Pump Relay Boards
Regular price
$250.67
Part Number: SUB-111-X1W-BL
Vendor: Micro-Air, Inc. Shipping Weight: 15.0 oz
Part Number: SUB-111-X1W-BL
Vendor: Micro-Air, Inc. Shipping Weight: 15.0 oz
Shipping calculated at checkout.
Pump Relay Boards

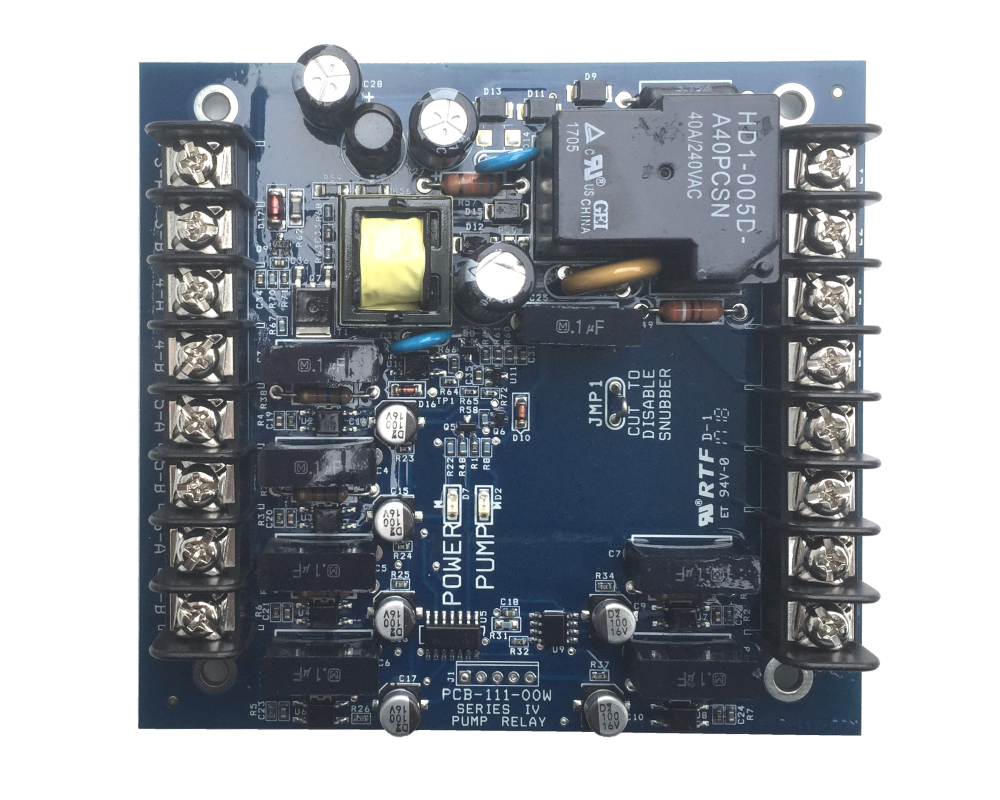

This Pump Relay (PRP) board allows control of a common seawater pump between multiple cabin or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls. Separate, fully-isolated pump trigger inputs accept either 115VAC/60Hz or 230VAC/50-60Hz. The pump power source and pump output is also isolated and can be either 115VAC or 230VAC/50-60Hz.
Two models of PRP are available, one that can support up to 2 trigger inputs, and one that can support up to 6. PRPs are also available enclosed in a metal electric box.
This Pump Relay (PRP) board allows control of a common seawater pump between multiple cabin or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls. Separate, fully-isolated pump trigger inputs accept either 115VAC/60Hz or 230VAC/50-60Hz. The pump power source and pump output is also isolated and can be either 115VAC or 230VAC/50-60Hz.
Two models of PRP are available, one that can support up to 2 trigger inputs, and one that can support up to 6. PRPs are also available enclosed in a metal electric box.
Features
- Compatible with All Cabin and Chiller Controls, Including Legacy OEM
- Replaces Legacy Cruisair Pump Relays
- Supports Dual Voltage using a single circuit board
Specifications/Notes
